DELTA CONVERTER IN INDIA
We distribute Delta Converter in Chennai, Bangalore, Pune, Mumbai, Ahmedabad, Hyderabad and Delhi.
Delta Electronics India offers a comprehensive range of DC/DC converters designed to meet various industrial needs. Their products range from 1W to 3000W, covering all popular industry standard sizes and footprints. Delta’s DC/DC converters are known for their high efficiency, reliability, and robust performance under harsh operating conditions.
Applications of Delta Converter
Delta Converter are used in a variety of applications across multiple industries:
Electric Vehicles
Enabling efficient power conversion in EV charging stations and onboard systems.
Telecommunications
Providing uninterrupted power to telecom towers and data centers.
Industrial Facilities
Powering automation systems with reliable voltage management.
Renewable Energy
Supporting solar and wind power systems with efficient energy conversion.
Key Features of Delta Converter
Advanced Features
Equipped with modern technologies like IoT connectivity, thermal management, and intelligent control.
Environmentally Friendly
Supports sustainability by reducing carbon footprints.
Wide Application Range
Suitable for industrial, commercial, and renewable energy sectors.
Compact Design
Their space-saving designs make them suitable for installations with limited space.
High Efficiency
DELTA converters are designed to minimize energy losses, offering efficiency levels up to 98%.

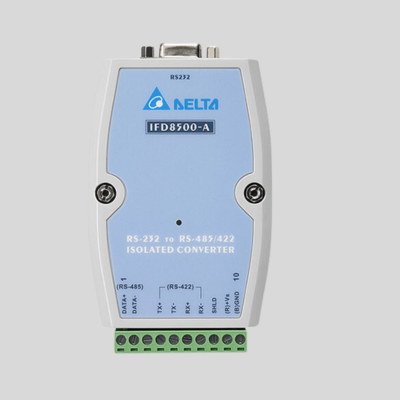

DELTA CONVERTER – IFD 8500 Communication Converter
The IFD8500 is the successor to IFD8500-A. Its key function is translating RS-232 signals into RS-485/RS-422 differential signals. The RS-232 interface for computers, PLCs and other controllers can be converted to an RS-485/RS-422 interface for communication over longer distances and to simplify multi-point industrial networks.
Features
Communication baud rate: up to 115200bps
Switch-less and fully-isolated design
Detect and configure the communication protocols automatically
Specifications
Power supply: +9V ~ +48VDC
Power consumption: 0.4 W
Insulation voltage: 5,000 VDC
Baud rate: Up to 115200 bps (Auto)
Connector: 9-pin D-SUB (receptacle)
Dimensions (L*W*H)：4.65*2.79*0.87in (118*71*22mm)
Weight: 122g
Terminal: 10-pin, accepts AWG1-#12 to #24 wires
DELTA CONVERTER – IP Converter
The Delta IP Converter is a robust device designed to facilitate seamless communication between devices using different protocols. It converts IP-based signals to serial communication signals (RS-232, RS-485, RS-422), making it ideal for integrating legacy systems with modern IP networks.
Features
Compact and Lightweight: Weighs 122g with dimensions 118x71x22mm.
Insulation Voltage: Rated at 5000 VDC for enhanced safety.
Low Power Consumption: Consumes only 0.4 W.
Power Supply: Operates on a wide range of +9V to +48VDC.
High Communication Baud Rate: Supports up to 115200 bps.
Switch-less and Fully-isolated Design: Ensures reliable and noise-free communication.
Automatic Protocol Detection: Detects and configures communication protocols automatically.
Specifications
Brand – Delta
Color – Black
Solar Array – Dual Array
Usage/Application – Solar System Controller
Nominal Voltage – 24 V
Nominal SPV Power – 1200 W
Maximum Output Current – 10 A

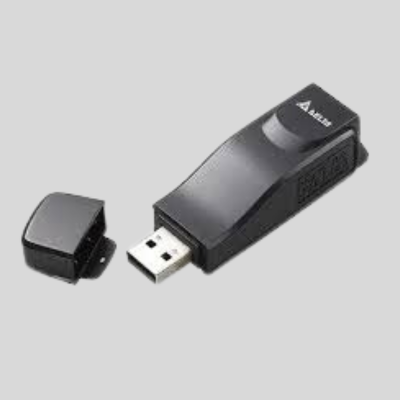

DELTA CONVERTER – USB/CAN OPEN CONVERTER
The Delta USB/CAN OPEN Converter (Model: IFD6503) is a versatile device designed to facilitate communication between USB and CANopen networks. It is ideal for integrating USB-based devices with CANopen systems, commonly used in industrial automation and control applications.
Features
Passed Full Compatibility Test: Ensures seamless integration with existing systems
Isolation: Includes isolation in the CANopen channel, including power supply, ensuring reliable and noise-free communication
High Compatibility: Supports CANopen protocol and is connectable to all Delta’s industrial automation products
Specifications
Cable Length – NO CABLE
Interface Type – USB TO CAN OPEN
Brand – DELTA
Usage/Application – PLC
Model Name/Number – IFD6503
DELTA CONVERTER – Communication Converter, IFD9503
The Delta IFD9503 Communication Converter is a versatile device designed to facilitate communication between devices using different protocols. It converts CANopen signals to serial communication signals (RS-232, RS-485, RS-422), making it ideal for integrating CANopen systems with other industrial networks.
Features
Passed Full Compatibility Test: Ensures seamless integration with existing systems
Isolation in CANopen Channel: Includes isolation for both communication and power supply, ensuring reliable and noise-free communication.
Connectable to Delta’s Industrial Automation Products: Seamless integration with Delta’s product range.
Supports CANopen Protocol: Ensures compatibility with CANopen systems.
Specifications
Typical Current: 28 mA, with an impulse current of 125 mA.
Power Supply Voltage: Operates on 24 VDC.
Serial Baud Rate: Supports rates from 10k to 1M bps.
Transmission Cables: 2 communication cables, 2 power cables, 1 shielded cable.
Connector: Removable, 5.08mm.
Electrical Isolation: Rated at 500 VDC for enhanced safety.
Transmission Method: CAN (Controller Area Network).
FAQ
How can I choose the right DELTA Converter for my needs?
To choose the right DELTA Converter, consider the following factors:
- Power requirements (voltage, current, and capacity)
- Type of application (e.g., renewable energy, industrial, telecom)
- Environmental conditions (temperature, humidity)
- Compatibility with existing systems
- Consult DELTA’s product catalog or an authorized distributor for expert guidance.
Can Delta DC/DC converters be used in harsh operating conditions?
Yes, Delta DC/DC converters are designed to perform reliably under harsh operating conditions, ensuring robust performance.
