YASKAWA GEAR MOTOR IN INDIA
We distribute Yaskawa gear motor in Chennai, Bangalore, Pune, Mumbai, Ahmedabad, Hyderabad and Delhi.
Equip any Sigma-7 rotary servo motor with a custom-matched Yaskawa gear motor. Match the needs of a high torque, low RPM application with high-precision, low backlash inline planetary gearheads from our selection of five different gear ratios and six gearhead sizes. Each gearhead is manufactured to Yaskawa’s exacting standards and factory tested for a perfect fit.
Applications of Yaskawa gear motor
Yaskawa gear motor are used in a variety of applications across multiple industries:
Material Handling
- Facilitating the movement and control of goods in warehouses and distribution centers.
- Ensuring reliable performance in hoists, cranes, and automated storage systems.
Conveyor Systems
Ensuring smooth and precise movement of materials along production lines.
Textile Machines
Delivering consistent performance in spinning and weaving equipment.
Packaging Machinery
Providing reliable and efficient operation for packaging processes.
Key Features of Yaskawa gear motor
Quiet Operation
Quiet helical cut gears reduce vibration and noise, ensuring a quieter working environment.
Ease of Integration
Yaskawa gear motors can be easily integrated into existing systems, thanks to their compatibility with various control architectures and communication protocols.
Versatility
Suitable for a wide range of applications, including high torque, low RPM applications, and general-purpose workhorse servo systems.
Durability
Built with high-quality materials, Yaskawa gear motors are designed to withstand harsh industrial conditions and ensure long service life.
High Precision
Yaskawa gear motors are engineered to provide high-precision, low backlash inline planetary gearheads, ensuring smooth and accurate motion.

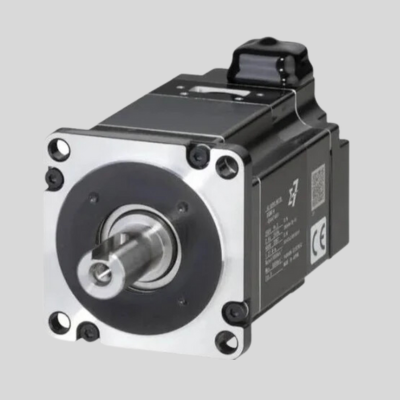

YASKAWA – S7J GEAR-MOTORS
Get maximum responsiveness from a gear motor engineered to match one of Yaskawa’s most versatile servo systems. The S7J was designed to extend the performance of Yaskawa SGM7J servo motors, a series known for maximum responsiveness in applications requiring precise load matching. S7J provides gear ratio options to 50/1 for precise motion in low capacity applications, while assuring world class accuracy at rated speeds to 3000 rpm and torque ratings up to 2.39 N-m (21 in-lb).
Applications of YASKAWA – S7J GEAR-MOTORS
Packaging Machinery
Conveyor Systems
Material Handling Equipment
Specification
Maintenance: Maintenance-free grease for the life of the unit
Backlash: Standard backlash of 5 arc-min
Seal Leakage Prevention: High viscosity, anti-separation grease that won’t liquefy or migrate away from gears
Gear Ratios: 3/1, 5/1, 10/1, 25/1, 50/1
Torque Ratings: Up to 2.39 N-m (21 in-lb)
Rated Speed: Up to 3000 RPM

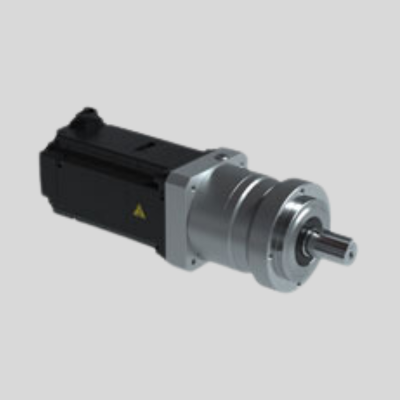

YASKAWA – S7A GEAR-MOTORS
Match the general-purpose workhorse of the Yaskawa servo line with a custom designed gearhead that enhances its versatile performance. S7J was optimized by servo application professionals for Yaskawa SGM7A servo motors, and maximizes their ability to produce a high rate of power at extremely low levels of inertia. The same durable gear motor is able to transfer the servo system’s high torque performance with an application requires it.
Application of YASKAWA – S7A GEAR-MOTORS
Material Handling
Packaging Machinery
Conveyor Systems
Specification
Maintenance: Maintenance-free grease for the life of the unit
Seal Leakage Prevention: High viscosity, anti-separation grease that won’t liquefy or migrate away from gears
Backlash: Standard backlash of 5 arc-min
Gear Ratios: 3/1, 5/1, 10/1, 25/1, 50/1
Torque Ratings: Up to 2.39 N-m (21 in-lb)
Rated Speed: Up to 3000 RPM
YASKAWA – S7G GEAR-MOTORS
Larger automation components are suited to the extra robust performance of S7G, designed for use with the Yaskawa SGM7G family of rotary servo motors. A full series of gearheads was designed to maximize the space-saving profile of 7G motors, while delivering high torque, consistent positional accuracy and maximum responsiveness to extreme changes in speed demand.
Applications of YASKAWA – S7G GEAR-MOTORS
Larger Automation Components
High Torque Applications
Material Handling Equipment
Specification
Weight: Approximately 2.5 kg (5.5 lbs)
Operating Temperature: -10°C to 50°C
Maintenance: Maintenance-free grease for the life of the unit
Seal Leakage Prevention: High viscosity, anti-separation grease that won’t liquefy or migrate away from gears
Backlash: Standard backlash of 5 arc-min
Gear Ratios: 3/1, 5/1, 10/1, 25/1, 50/1
Torque Ratings: Up to 2.39 N-m (21 in-lb)
Rated Speed: Up to 3000 RPM
YASKAWA – S7P GEAR-MOTORS
Add the advantages of a gearhead to a servo motor optimized for space savings. Yaskawa created the S7P to maximize the advantage of SGM7P servo motors, which pack full torque and speed performance into a motor reduced in length by 25%. This puts world-class speed control and positional accuracy into less space than ever before, allowing machine designers to develop more compact and efficient products.
Application of YASKAWA – S7P GEAR-MOTORS
Space-Constrained Environments
Material Handling Equipment
Packaging Machinery
Specification
Weight: Approximately 2.5 kg (5.5 lbs)
Operating Temperature: -10°C to 50°C
Maintenance: Maintenance-free grease for the life of the unit
Seal Leakage Prevention: High viscosity, anti-separation grease that won’t liquefy or migrate away from gears
Backlash: Standard backlash of 5 arc-min
Gear Ratios: 3/1, 5/1, 10/1, 25/1, 50/1
Rated Speed: Up to 3000 RPM
Torque Ratings: Up to 2.39 N-m (21 in-lb)
FAQ
How do I install a Yaskawa Gear Motor?
Installation instructions for Yaskawa Gear Motors can be found in the product manuals and instruction sheets provided by Yaskawa Electric Corporation. It is recommended to follow these instructions carefully to ensure proper installation and optimal performance.
How do I monitor the performance of a Yaskawa Gear Motor?
Yaskawa Gear Motors can be monitored using Yaskawa’s control systems and software, which provide detailed information about the gear motor’s performance, including torque, speed, and operational status.
