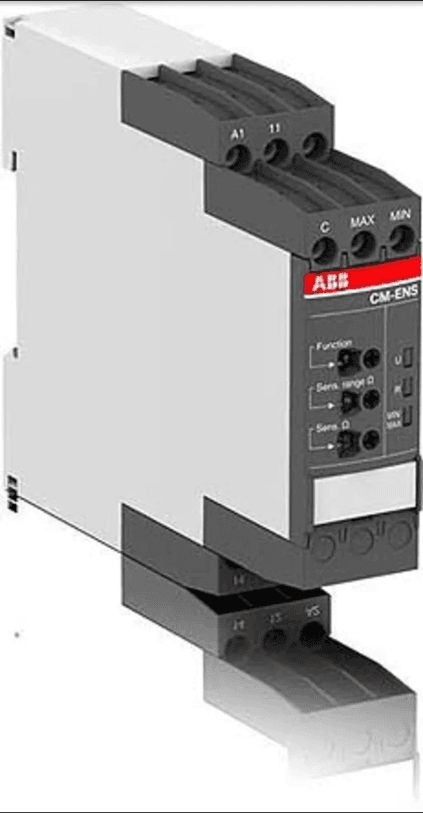

Manufacturers Part No. 1SVR740850R2200  CM-ENS.23P

SpecificationsBrandABBNumber of Inputs1Mounting StyleDIN RailSupply Voltage110 → 130 V ac, 220 → 240 V acOverall Length113.4mmOverall Width22.5mmOverall Depth113.4mmMinimum Operating Temperature-25°CMaximum Operating Temperature+60°CTermination TypePush InIP RatingIP20 (Terminal), IP50 (Housing)Output TypeSPDT RelayCurrent Rating20 (110 → 130 V ac) mA, 8.5 (220 → 240 V ac) mANumber of Outputs1Isolation Voltage300 (Supply Circuit)VSensitivity0.1 → 1000 kΩInput TypeVoltageStandards MetCAN/CSA C22.2 No.14, IEC/EN 60255-27, IEC/EN 60947-5-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508SeriesCM-ENSCountry of OriginDEOverall Width22.5mmOverall Depth113.4mmMinimum Operating Temperature-25°CMaximum Operating Temperature+60°CTermination TypePush InIP RatingIP20 (Terminal), IP50 (Housing)Output TypeSPDT RelayCurrent Rating20 (110 → 130 V ac) mA, 8.5 (220 → 240 V ac) mANumber of Outputs1Isolation Voltage300 (Supply Circuit)VSensitivity0.1 → 1000 kΩInput TypeVoltageStandards MetCAN/CSA C22.2 No.14, IEC/EN 60255-27, IEC/EN 60947-5-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508SeriesCM-ENSCountry of OriginDE
